Right-angle Prisms

Right-angle Prisms

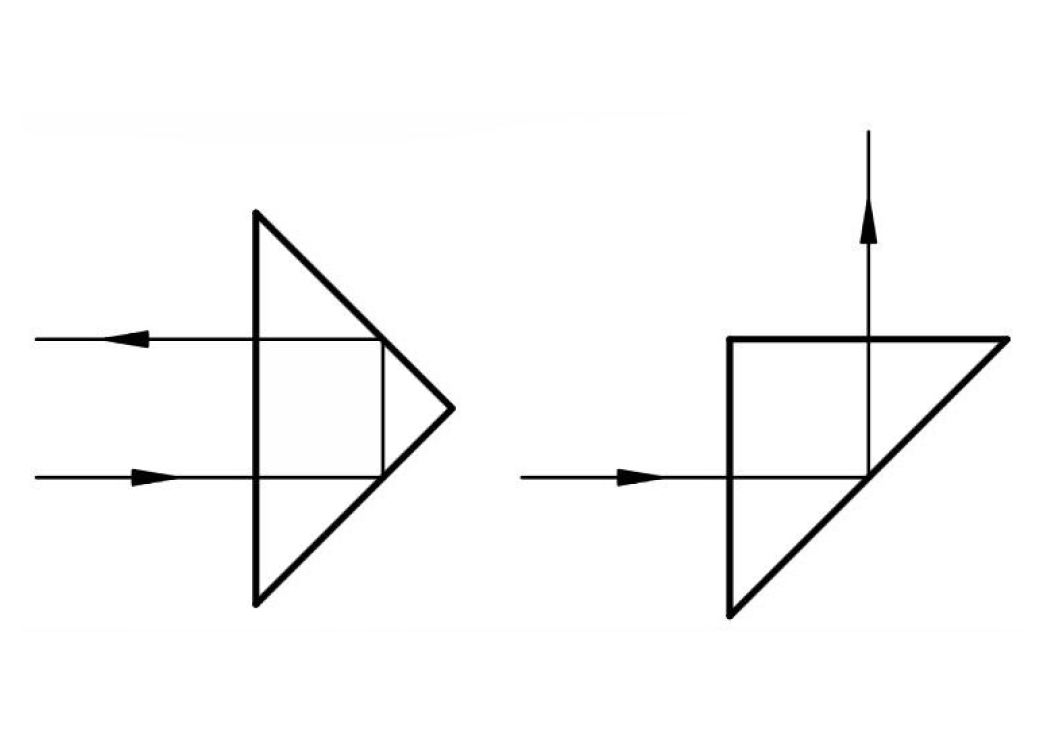

Right angle can be used to deflect beams by 180° or by 90°.

Description

Right angle can be used to deflect beams by 180° or by 90°.

Optical specifications

version	precision	standard
flatness	<λ/10	<λ/4
tolerance 90°	±5''	±3'
tolerance 45°	±30''	±3'
pyramidal error	<30''	<3'

material	N-BK7	fused silica
spectral range	350–2700 nm	180–2500 nm

Standard dimensions

side length	10 mm	15 mm	20 mm	25 mm	30 mm	40 mm
Art. No., precision N-BK7	UPB 0.10	UPB 0.15	UPB 0.20	UPB 0.25	UPB 0.30	UPB 0.40
Art. No., standard N-BK7	UPB 1.10	UPB 1.15	UPB 1.20	UPB 1.25	UPB 1.30	UPB 1.40
Art. No., precision fused silica	UPS 0.10	UPS 0.15	UPS 0.20	UPS 0.25	UPS 0.30	UPS 0.40
Art. No., standard fused silica	UPS 1.10	UPS 1.15	UPS 1.20	UPS 1.25	UPS 1.30	UPS 1.40
